Power Noise Amplifier wholesal

Item name

Technical parameters

working frequency

2400-2500MHz

Saturated power output

47±1dBm

Gain

45±1dB

In-band flatness

≤±1dB

Input and output standing

≤1.5

Out-of-band spurs

9kHz～1GHz：≤-36dBm/30kHz 1GHz～12.75GHz：≤-30dBm/30KHz

Operating Voltage

DC+28V

Working current

≤3.5A

Power supply interface

Red &Black power cord

RF port

SMA-KFD

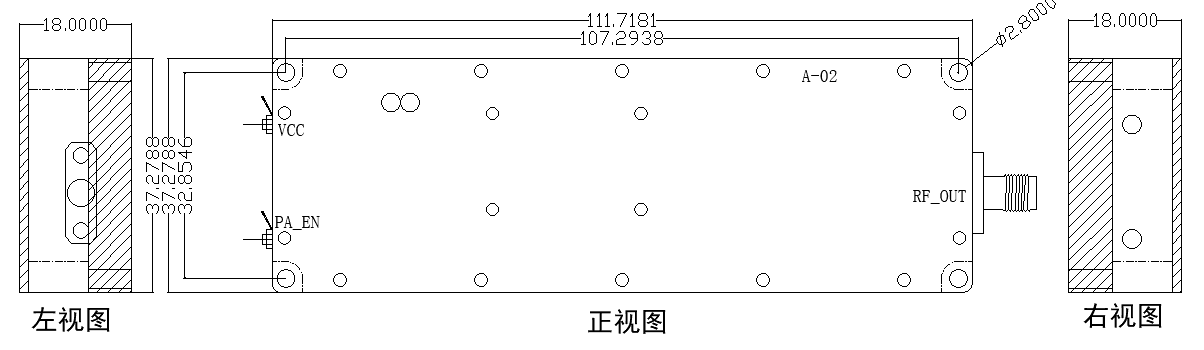

Amplifier size

111*37.2*18mm

Operating temperature

-10～+55℃

Relative humidity

5%～95%，No condensation

Storage temperature

-25～+65℃
