power amplifiers price
110-200MHz 50瓦 power amplifiers price
Material：alloy
Delivery：3~7天
Description：110-200MHz 50瓦 power amplifiers price
Specifications：110-200MHz 50瓦 power amplifiers price
Online Consultation
Delivery：3~7天
Description：110-200MHz 50瓦 power amplifiers price
Specifications：110-200MHz 50瓦 power amplifiers price
- Model：
- .RF technical parameters：

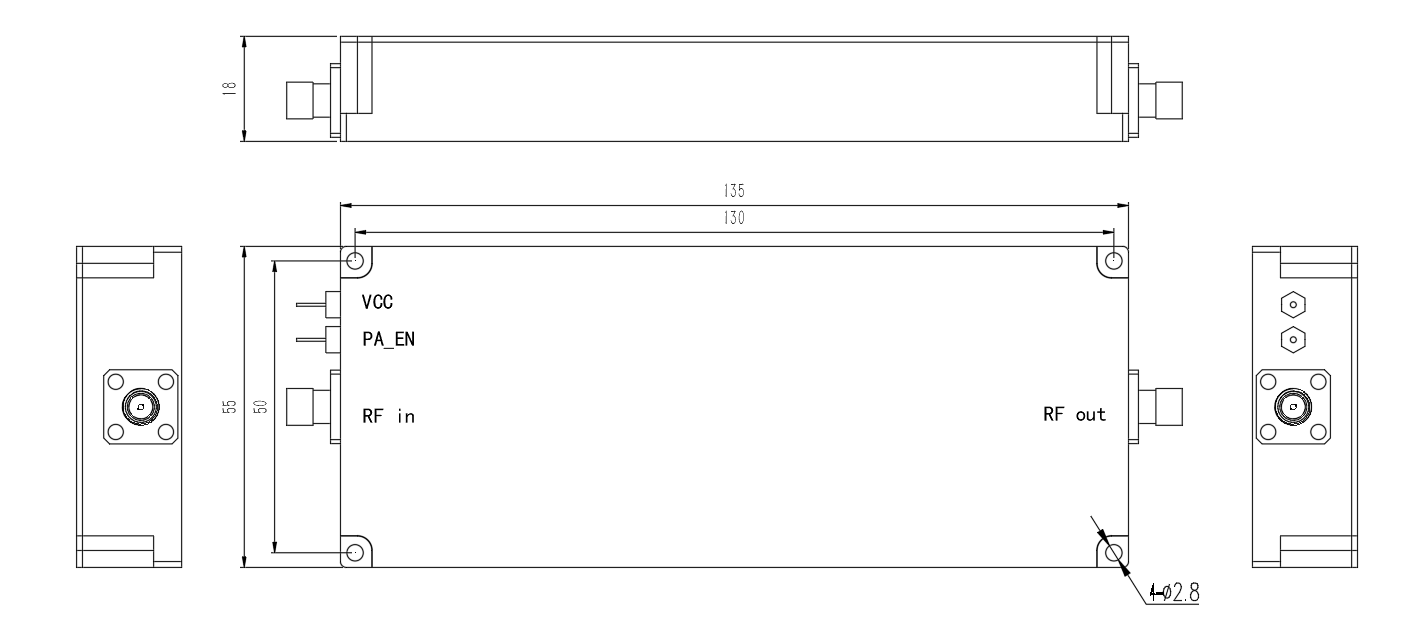

- Dimension：
50W power amplifier
PA5725-5850M-50
|
Item name |
Technical parameters |
|
working frequency |
5725-5850MHz |
|
Saturated power output |
47±1dBm |
|
Gain |
45±1dB |
|
In-band flatness |
≤±1dB |
|
Input and output standing |
≤1.5 |
|
Operating Voltage |
DC+28V |
|
Working current |
≤4.5A |
|
ON/OFF |
Off=0;ON=3.3~28V |
|
RF port |
SMA-KFD |
|
Amplifier size |
135*55*18mm |
|
Operating temperature |
-10～+55℃ |
|
Relative humidity |
5%～95%，No condensation |
|
Storage temperature |
-25～+65℃ |
